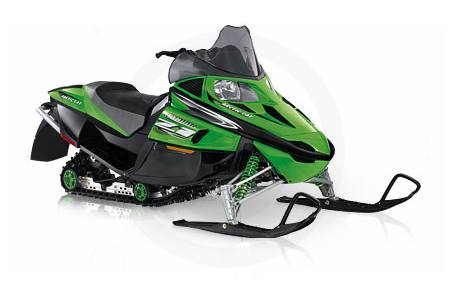

2007 Arctic Cat Jaguar Z1

DEMO BLOW OUT

Now until September 30, 2010
$4,599.00 Off Store Price
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

A TRIBUTE TO THE SPORT OF SNOWMOBILING. Underneath that gorgeous exterior resides the revolutionary Twin Spar chassis and our all-new 4-valves-per-cylinder, EFI, 1100 power plant. Not to mention electric start, Infinite Rider Positioning, ACT Diamond Direct Drive with reverse, seventh-generation AWS suspension we don't want to stop. And frankly, neither will you once you grab hold of that throttle.

    SPECIFICATIONS
    • Engine: Suzuki
    • Bore x Stroke: 98.0 mm x 70.0 mm
    • Lubrication: Dry sump
    • Type, Displacement, Cooling and Cylinders: 4-stroke, 1056, liquid, 2
    • Estimated Horsepower: 123
    • Ignition: Full transistor/coil at plug
    • Carburetion: 48 mm dual throttle body EFI
    • Exhaust: Stainless steel
    • Alternator (watts): 500 @ 5000 rpm
    • Drive clutch: Arctic 4-roller (rpm sensing)
    • Driven clutch: Arctic (roller cam) ACT drive system
    • Front chassis: Aluminum Twin Spar
    • Rear chassis: Aluminum
    • Ski stance (In.): 43
    • Ski material: UHMW plastic ski saddleless
    • Ski carbides: Dual runner
    • Front suspension: AWS VII double-wishbone A-arms with Arctic Cat gas (IFP) shocks and sway bar
    • Front Travel (In.): 9.5
    • Rear suspension: Slide-action frame with coupling blocks, adjustable torsion springs & Arctic Cat gas (IFP) shocks
    • Rear Travel (In.): 13.5
    • Track: Rubber/fiber reinforced
    • Track width x length x lug (In.): 15 x 128 x 1.00
    • Brakes: Hydraulic disc
    • Fuel capacity (Gal.): 9.4
    • Length x Width (In.): 118 x 48
    • Estimated dry weight (lbs.): 575
    • Number of Riders: 1
    • Headlight: Dual halogen (4-bulb)
    • Standard: Infinite Rider Positioning, Digital/Analog Tachometer, Digital/Analog Speedometer, Trip Odometer, Electric Gas Gauge, Low Oil Light, Coolant Overheat Light, Electric Start, Reverse, Hi/Low Handwarmer, Hi/Low thumbwarmer, Adjustable Windshield, Belt Holder, Accessory Outlet
    • Optional: Mirrors, Tether Switch, 2-Passenger Seat, Hitch, 2-Way Radio Communication
    • Color options: Green, Red or Black

    Specifications

    Engine
    Engine Type 4-stroke Suzuki
    Displacement 1056 cc
    Cylinders 2
    Bore x Stroke 98 mm x 70 mm
    Engine Cooling Liquid
    Carburetion 48 mm dual throttle body EFI
    Ignition Full transistor/coil at plug
    Exhaust Stainless steel
    Alternator 500 watts @ 5000 rpm
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic 4-roller (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT drive system
    Suspension
    Front Suspension AWS VII double-wishbone A-arms with Arctic Cat gas (IFP) shocks and sway bar
    Front Travel 9.5 In.
    Rear Suspension Slide-action frame with coupling blocks, adjustable torsion springs & Arctic Cat gas (IFP) shocks
    Rear Travel 13.5 In.
    Ski Type UHMW plastic ski saddleless
    Ski Stance 43 In.
    Track Type Rubber/fiber reinforced
    Track Dimensions 15" x 128" x 1.00"
    General
    Speedometer Standard: Digital/Analog
    Tachometer Standard: Digital/Analog
    Odometer Standard
    Headlight Dual halogen (4-bulb)
    Fuel Capacity 9.4 Gal.
    Dry Weight 575 lbs.
    Windshield Standard: Adjustable
    Color Green, Red or Black
    Options
    Electric Start Standard
    Hand & Thumb Warmers Standard: Hi/low
    Reverse Standard
    Mirrors Optional

    Compare Models

    		 Print








    Year 2007
    Manufacturer Arctic Cat
    Model Jaguar Z1
    Style Performance
    MSRP* $13,499.00
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic 4-roller (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT drive system
    Engine
    Engine Type 4-stroke Suzuki
    Displacement 1056 cc
    Bore x Stroke 98 mm x 70 mm
    Cylinders 2
    Engine Cooling Liquid
    Carburetion 48 mm dual throttle body EFI
    Ignition Full transistor/coil at plug
    Exhaust Stainless steel
    Alternator 500 watts @ 5000 rpm
    General
    Speedometer Standard: Digital/Analog
    Tachometer Standard: Digital/Analog
    Odometer Standard
    Headlight Dual halogen (4-bulb)
    Fuel Capacity 9.4 Gal.
    Dry Weight 575 lbs.
    Windshield Standard: Adjustable
    Color Green, Red or Black
    Warranty
    Options
    Electric Start Standard
    Hand & Thumb Warmers Standard: Hi/low
    Reverse Standard
    Mirrors Optional
    Suspension
    Front Suspension AWS VII double-wishbone A-arms with Arctic Cat gas (IFP) shocks and sway bar
    Front Travel 9.5 In.
    Rear Suspension Slide-action frame with coupling blocks, adjustable torsion springs & Arctic Cat gas (IFP) shocks
    Rear Travel 13.5 In.
    Ski Type UHMW plastic ski saddleless
    Ski Stance 43 In.
    Track Type Rubber/fiber reinforced
    Track Dimensions 15" x 128" x 1.00"
