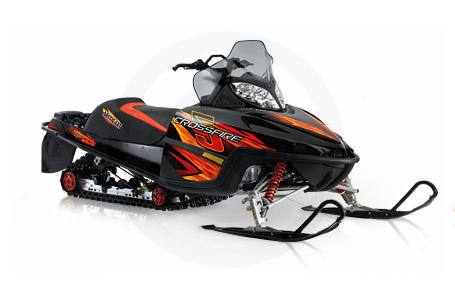

2007 Arctic Cat Crossfire 5

FAMILY FUN

Now until September 30, 2010
$700.00 Off Store Price
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

PERMISSION TO ROAM. Carving up trails one minute, wolfing down backcountry the next. The versatile Crossfire is built to go wherever your passion leads you.

    SPECIFICATIONS
    • Engine: Suzuki
    • Bore x Stroke: 71 mm x 63 mm
    • Lubrication: Oil injection
    • Type, Displacement, Cooling and Cylinders: 2-stroke, 499, liquid, 2
    • Estimated Horsepower: 84
    • Ignition: 3D
    • Carburetion: 38 mm throttle body batteryless EFI
    • Exhaust: Tuned pipe & canister
    • Alternator (watts): 270 @ 3,500 rpm
    • Drive clutch: Arctic (rpm sensing)
    • Driven clutch: Arctic (roller cam) ACT drive system
    • Front chassis: Aluminum
    • Rear chassis: Aluminum with mountain taper (ETT)
    • Ski stance (in.): 42" - 44" adjustable
    • Ski material: UHMW plastic saddleless
    • Ski carbides: dual runner
    • Front suspension: AWS VI double-wishbone A-arms with Ryde FX shocks, adjustable preload springs with swaybar
    • Front travel (in.): 9.2
    • Rear suspension: FasTrack Long-Travel System slide-rail, adjustable torsion spring, Ryde FX shocks, Torque Sensing Link rear arm
    • Rear Travel (in.): 17
    • Track: RIPSAW
    • Track width x length x lug (in.): 15 x 136 x 1.25
    • Brakes: hydraulic disc
    • Fuel capacity (gal.): 11
    • Length x Width (in.): 127 x 46.5
    • Estimated dry weight (lbs.): 480
    • Number of Riders: 1
    • Headlight: dual halogen (4-bulb):
    • Standard: Tachometer, Digital/Analog Speedometer, Trip Odometer, Mechanical Gas Gauge, Low Oil Light, Coolant Overheat Light, Reverse, Hi/Low handwarmer, Hi/Low Thumbwarmer, Mountain Strap, Spark Plug Holder, Belt Holder, Rack
    • Optional: Electrical Start, Tether Switch, Hitch
    • Color options: Black

    Specifications

    Engine
    Engine Type Suzuki 2-stroke
    Displacement 499 cc
    Bore x Stroke 71 mm x 63 mm
    Cylinders 2
    Engine Cooling Liquid
    Carburetion 38 mm throttle body batteryless EFI
    Ignition 3D
    Exhaust Tuned pipe & canister
    Alternator 270 watts @ 3,500 rpm
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT drive system
    Suspension
    Front Suspension AWS VI double-wishbone A-arms with Ryde FX shocks, adjustable preload springs with swaybar
    Front Travel 9.2 in.
    Rear Suspension FasTrack Long-Travel System slide-rail, adjustable torsion springs, Ryde FX shocks, Torque Sensing Link rear arm
    Rear Travel 17 in.
    Ski Type UHMW plastic saddleless
    Ski Stance 42 - 44 in. adjustable
    Track Type RIPSAW
    Track Dimensions 15" x 136" x 1.25"
    General
    Speedometer Standard: Digital/Analog
    Tachometer Standard
    Odometer Standard
    Headlight Dual halogen (4-bulb)
    Fuel Capacity 11 gal.
    Dry Weight 480 lbs.
    Color Black
    Options
    Electric Start Optional
    Hand & Thumb Warmers Standard: Hi/Low
    Reverse Standard

    Compare Models

    		 Print








    Year 2007
    Manufacturer Arctic Cat
    Model Crossfire 5
    Style Hybrid
    MSRP* $9,399.00
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT drive system
    Engine
    Engine Type Suzuki 2-stroke
    Displacement 499 cc
    Bore x Stroke 71 mm x 63 mm
    Cylinders 2
    Engine Cooling Liquid
    Carburetion 38 mm throttle body batteryless EFI
    Ignition 3D
    Exhaust Tuned pipe & canister
    Alternator 270 watts @ 3,500 rpm
    General
    Speedometer Standard: Digital/Analog
    Tachometer Standard
    Odometer Standard
    Headlight Dual halogen (4-bulb)
    Fuel Capacity 11 gal.
    Dry Weight 480 lbs.
    Windshield
    Color Black
    Warranty
    Options
    Electric Start Optional
    Hand & Thumb Warmers Standard: Hi/Low
    Reverse Standard
    Mirrors
    Suspension
    Front Suspension AWS VI double-wishbone A-arms with Ryde FX shocks, adjustable preload springs with swaybar
    Front Travel 9.2 in.
    Rear Suspension FasTrack Long-Travel System slide-rail, adjustable torsion springs, Ryde FX shocks, Torque Sensing Link rear arm
    Rear Travel 17 in.
    Ski Type UHMW plastic saddleless
    Ski Stance 42 - 44 in. adjustable
    Track Type RIPSAW
    Track Dimensions 15" x 136" x 1.25"
